Pavement Marking Area
Category Transportation - Assets
Feature Dataset Name STAND-ALONE
Item Name PAVEMENT_MARK_AREA_PDX
Database Type SDE
Originator City of Portland
Bureau Bureau of Transportation
Publication Date
Abstract This feature class identifies the location, type, style and material of pavement marking represented as polygons in Portland Bureau of Transportation’s (PBOT) GIS. This includes areas with solid fills (Bike Lane Solid Green (BLSG)) as well as those which are marked with striped markings (Striped Yellow 8 (SY8)).
Purpose This dataset serves as PBOT’s GIS inventory areal pavement markings.
Supplemental Information
Last Dataset Update 10/23/2026 16:45
Last Source Update 10/23/2026 05:10
Maintenance/Update Frequency Weekly
Extent Clackamas County, Multnomah County, and Washington County, Oregon
Data Type Vector
Shape Type Polygon
Feature Count 3468
Horizontal Position Accuracy
Horizontal Position Accuracy Link Taxlots
Progress Complete
North Bounding Coordinate 726220.301916525
South Bounding Coordinate 653331.621431142
East Bounding Coordinate 7693823.26773803
West Bounding Coordinate 7616963.6024598
Theme Keyword(s) Pavement marking
Theme Keyword Thesaurus None
Place Keyword(s) Portland, Multnomah County, Washington County, Clackamas County, Oregon
Place Keyword Thesaurus None
Access Constraints Available for Public Use
Use Constraints These data are distributed under the terms of the City of Portland Data Distribution Policy. Care was taken in the creation of this data but it is provided "as is".

The City of Portland cannot accept any responsibility for errors, omissions, or positional accuracy.
Source Dataset Type Enterprise Geodatabase
Output Geodatabase ASSETS_PDOT
Distribution Grid: State plane coordinate system 1983(91).
Units: International feet
Datum: North American Datum of 1983/1991 (HPGN)
Liability: The information in this file was derived from digital databases on the City of Portland GIS. Care was taken in the creation of this file. The City cannot accept any responsibility for errors, omissions, or positional accuracy. There are no warranties, expressed or implied.
Format: Shapefile or File Geodatabase Feature Class - Data will be provided via City of Portland FTP Site.
Online Resource: http://portlandmaps.com/opendata
Online Instructions: City of Portland Public/Open Data is distributed via the PortlandMaps Open Data Site - http://portlandmaps.com/opendata. Data not available on the PortlandMaps Open Data site can be requested by contacting the City of Portland CGIS Group - maps@portlandoregon.gov
Transfer Size: varies
SPCS Zone Identifier: 5076
Contact(s)
Add
PBOT GIS Support
503-823-5185
PBOTGISSupport@portlandoregon.gov
1120 SW Fifth Ave., Suite 1331
Portland, OR 97204

City of Portland - PBOT
503-823-5185
PBOTFrontDesk@portlandoregon.gov
File(s)
Add
Images

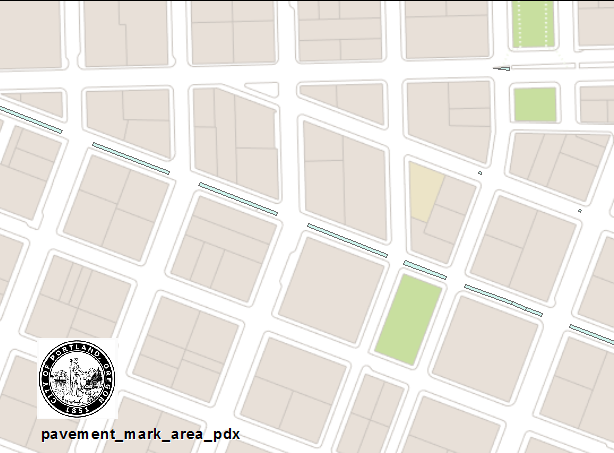

53422.png 150.30Kb X
Lineage
Add

Web Services

Service Description Feature Access Layer
PBOT_DefaultLayers This service includes an array of asset, permitting, planning and project data to serve as a general reference for PBOT staff working remotely. Dynamic Area Markings
PBOT_DefaultLayers This service includes an array of asset, permitting, planning and project data to serve as a general reference for PBOT staff working remotely. Dynamic Area Markings
PBOT_Assets This service includes an array of asset data to serve as a general reference for public-facing web applications. Dynamic Area Markings
PBOT_Assets This service includes an array of asset data to serve as a general reference for public-facing web applications. Dynamic Area Markings
Transportation Transportation Layers Dynamic Area Markings
Add

Attribute Tables & Domains

X
pavement_mark_area_pdx
Table Description
Table Jurisdiction
Column Sort Column Name Column Alias Column Type Column Size Domain Value(s) Column Description
Add
1 AssetID AssetID String 15
Add
X
Unique asset identifier.
1 Owner Owner String 15
Add
X
Owner of the asset. PdxTrans means the asset is owned by PBOT.
1 MaintResp MaintResp String 15
Add
X
Maintainer of the asset. PdxTrans means that PBOT is responsible for maintaining the asset.
1 LocationID LocationID String 15
Add
X
Location in PBOT's location hierarchy system.
1 ImagePath ImagePath String 255
Add
X
Link to related diagram or photo, not typically used for pavement markings.
1 AreaType AreaType Integer 4
Add
3651 Island End X
3652 Gore X
3653 Bike Area X
3654 No Parking Area X
X
Type of marking, reflects the purpose of the marking.
1 AreaStyle AreaStyle String 8
Add
BSBW Buffer, Solid Bees Wax X
BLDG Bike Lane Dashed Green X
BOSG Bike Other Solid Green X
BBSG Bike Box Solid Green X
BLSG Bike Lane Solid Green X
DO Dome Only
 X
LNRED Lane, Red X
LNREDBR Lane, Red, Broken X
OTHER Other X
SDY4 Solid Yellow 4 X
SDY8 Solid Yellow 8 X
SDW4 Solid White 4 X
SDW8 Solid White 8 X
SW4 Striped White 4 X
SW8 Striped White 8 X
SY4 Striped Yellow 4 X
SW12 Striped White 12 X
SY8 Striped Yellow 8 X
UNK Unknown X
WX White X, 4" Center, 12"  X
WF White Filled X
WA Warning Area X
YF Yellow Filled X
X
Style of pavement marking area (e.g., Striped White 12 (SW12), Buffer, Solid Bees Wax (BSBW), Yellow Filled (YF)).
1 Material Material String 3
Add
BUT Button X
CPG Cold Plastic, Glued X
CPI Cold Plastic, Inlaid X
CTP Cold Thermal Plastic X
HPS Hot Plastic, Sprayed X
HPE Hot Plastic, Extruded X
LTX Latex Paint, Skid-Resistant X
PNT Paint X
R1W Reflector, 1-way X
R2W Reflector, 2-way X
UNK Unknown X
X
Pavement marking material.
